Excelsior Power

SOLAR INVERTER LITHIUM BATTERY PACKAGE BASIC LARGE

SOLAR INVERTER LITHIUM BATTERY PACKAGE BASIC LARGE

$5,699.00 AUD
$6,500.00 AUD $5,699.00 AUD
Sale Sold out
Shipping calculated at checkout.



The Excelsior Power range of complete off-Grid solar Power Stand alone systems are a complete package for your remote power requirements.

We have applied our years of experience of designing systems for clients to create these off the shelf packages for ease of selection and time

saving for the end user.

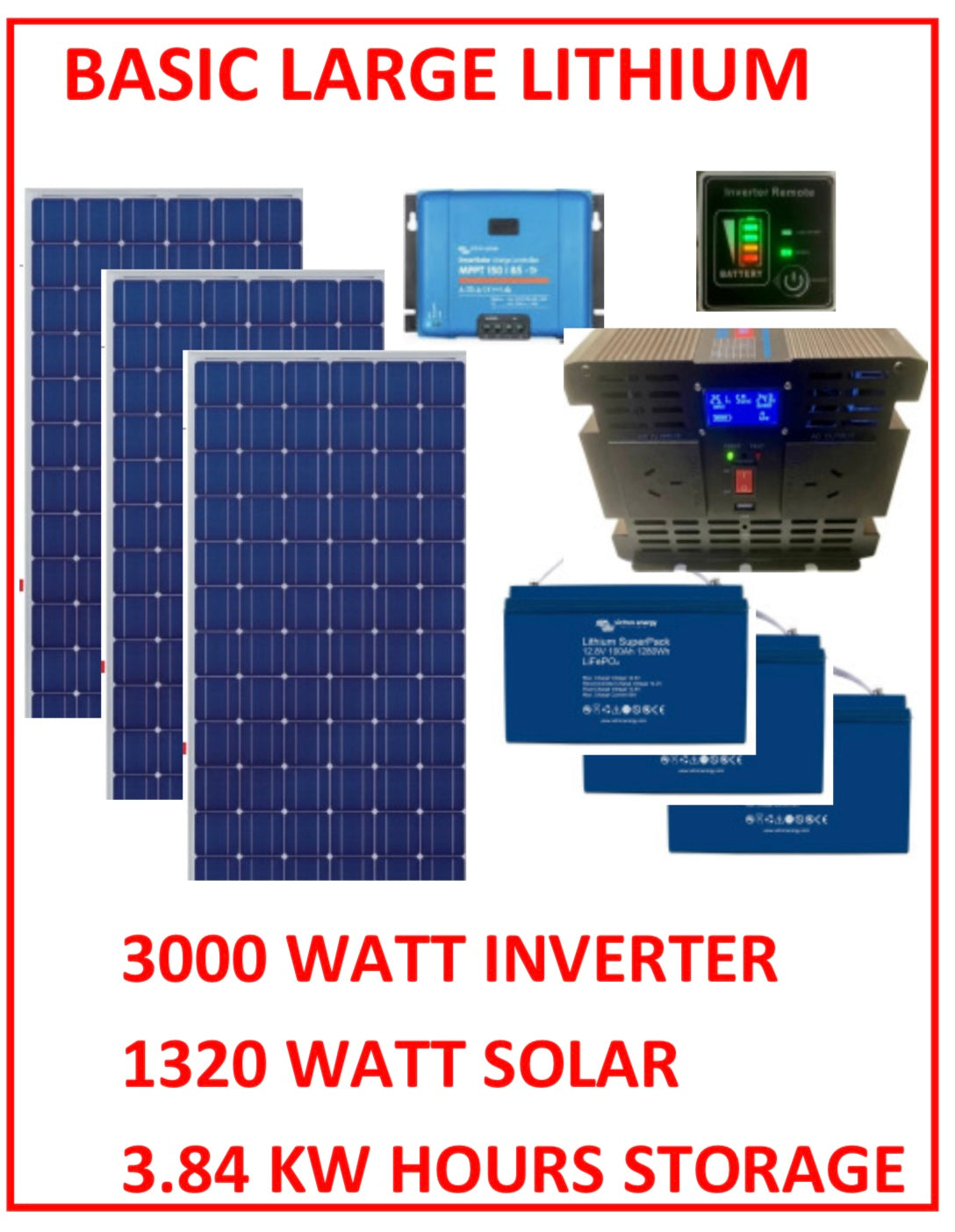

System includes:

3 by 440 watt Solar Panel

Inverter PSX3000, 6000 watt Surge Pure sine wave, 12 volt

3 by 100 Amp/Hour, 12 volt Victron Lithium Battery

85 Amp Victron MPPT Solar Regulator

Cables

Phone for best freight price

Prices do not include freight, please call for freight quote!

1 and 5 YEAR WARRANTY

INVERTER SPECIFICATIONS

Output power continuous:

3000W

Dimensions (mm):

95h x 205w x 355d

Output power intermittent:

3300W

Mass:

5.6 Kg

Output power surge:

6000W

Battery high protection:

Yes

Input voltage:

10-15 V

Battery low protection:

Yes

Standby current:

<1.3A

Overload protection:

Yes

Output frequency:

50 Hz

Over temp protection:

Yes

Output regulation:

+/-5%

Thermal fan:

Yes

Output waveform:

Modified sine

Output Power LED:

Yes

Efficiency:

90%

Fault LED:

Yes

Selectable demand start:

No

Audible alarm:

Yes

Output isolation:

Yes

Remote control:

Yes

Battery voltage display:

Yes

Output  power display:

Yes



BATTERY SPECIFICATIONS



Battery Voltage:

12

Dimensions (mm):

220h x 330w x 172d

Capacity:

100 A/H

Mass:

14Kg

 No of Batteries

  3  System Voltage:  12 Volts





SOLAR PANEL SPECIFICATIONS







Panel Voltage:

32.00

Dimensions (mm):

35h x 1134w x 1722d

Wattage:

440 W

O C Voltage:

38.98 V

 Current at Max Power

  13.46 A  Mass  21 Kg





SOLAR REGULATOR SPECIFICATIONS







Battery Voltage:

12

Dimensions (mm):

216h x 295w x 103d

Amps:

85

LCD Display:

Optional











View full details
