Remote Control with Colour Display for Victron Equipment

Victron Remote Monitor & Control

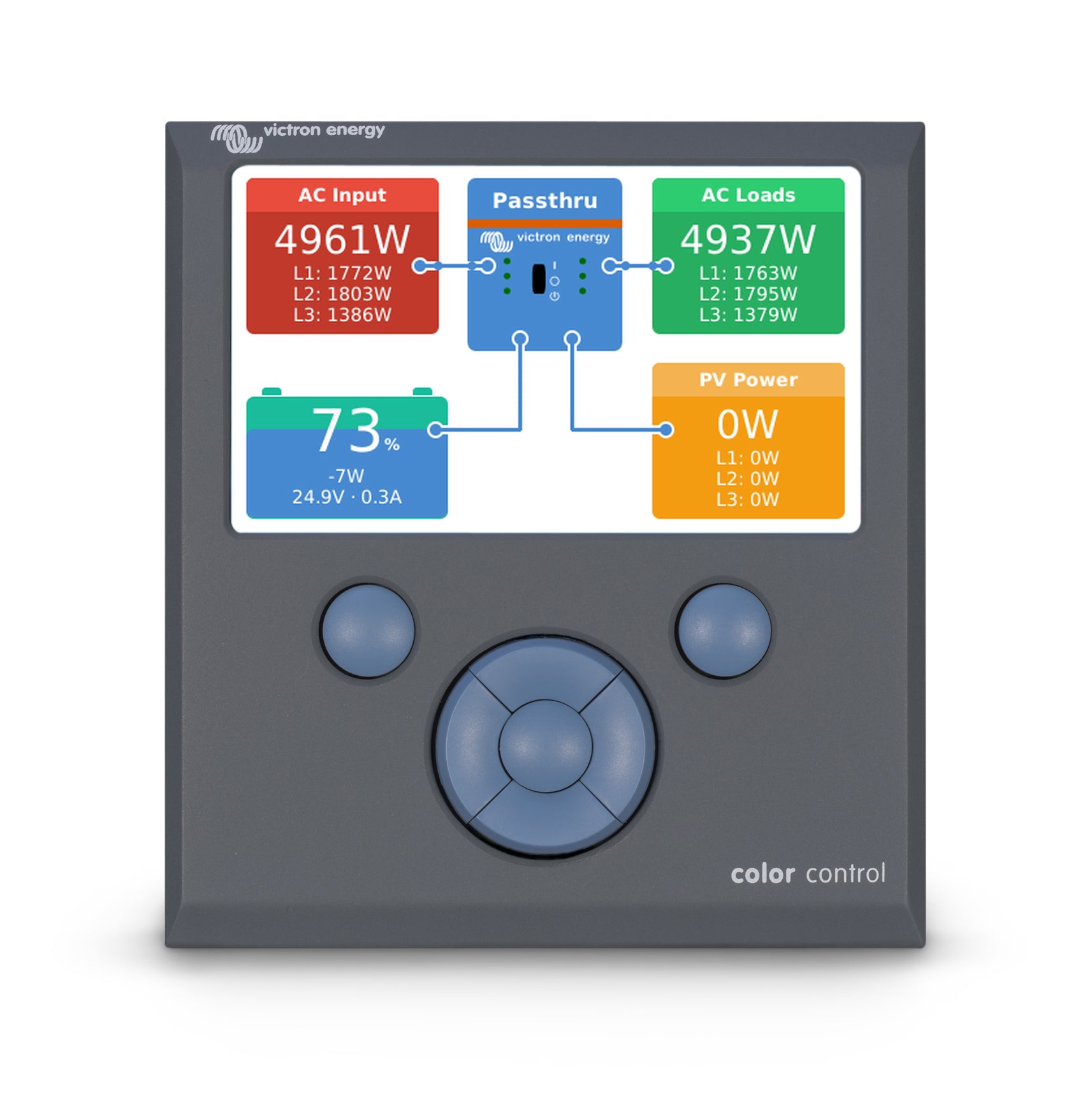

Color Control GX
The Color Control (CCGX) provides intuitive control and monitoring for all Victron power systems.

The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT solar
chargers, BMV battery monitors, Lynx Ion + Shunt and more.

VRM Online Portal
Besides monitoring and controlling products locally on the CCGX itself, all readings are also
forwarded to our free remote monitoring website: the VRM Online Portal. To get an impression, try
the demo on https://vrm.victronenergy.com. See also the screenshots below.

Remote Console on VRM
Monitor, control and configure the CCGX remotely, over the internet. Just like standing in front of the
device, everything can also be done remotely. The same functionality is also available on the local
network, Remote Console on LAN.

Automatic genset start/stop
A highly customizable start/stop system. Use state of charge, voltage, load and other parameters.
Define a special set of rules for quiet times, and optionally a monthly test run.
The heart of ESS – Energy Storage System
The CCGX is the Energy Manager in an ESS system. More information in the ESS manual:
https://www.victronenergy.com/live/ess:design-installation-manual
Data logging
When connected to the internet, all data is sent to the VRM Portal. When there is no internet
connection available, the CCGX will store the data internally, up to 48 hours. By inserting a micro SDcard or USB stick, more data can be stored. These files can the
