Battery Charger, 24 Volt, 50 Amp 3 battery Bank Centaur Charger 50/24
Battery Charger, 24 Volt, 50 Amp 3 battery Bank Centaur Charger 50/24
Perfect chargers for any type of battery
Charge voltage can be precisely adjusted to suit any sealed or unsealed battery system.
In particular, sealed maintenance free batteries must be charged correctly in order to ensure a long service life.
Overvoltage will result in excessive gassing and venting of a sealed battery. The battery will dry out and fail.
Suitable for AC and DC supply (AC-DC and DC-DC operation)
Except for the 3-phase input models, the chargers also accept a DC supply.
Controlled charging

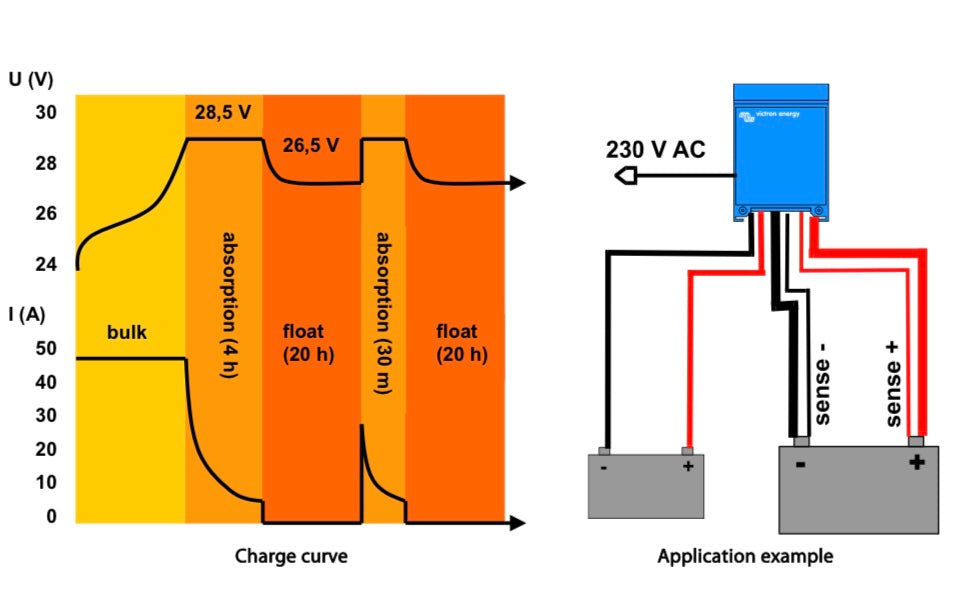

Every TG Charger has a microprocessor, which accurately controls the charging in three steps. The charging
process takes place in accordance with the IUoUo characteristic and charges more rapidly than other processes.
Use of TG Chargers as a power supply
As a result of the perfectly stabilized output voltage, a TG Charger can be used as a power supply if batteries or
large buffer capacitors are not available.
Two outputs to charge 2 battery banks (24V models only)
The TG Chargers feature 2 isolated outputs. The second output, limited to approximately 4A and with a slightly
lower output voltage, is intended to top up a starter battery.
To increase battery life: temperature compensation
Every Skylla TG Charger comes with a battery temperature sensor. When connected, charge voltage will
automatically decrease with increasing battery temperature. This feature is especially recommended for sealed
batteries which otherwise might be overcharged and dry out due to venting.
Battery voltage sense
In order to compensate for voltage loss due to cable resistance, TG Chargers are provided with a voltage sense
facility so that the battery always receives the correct charge voltage.
5 YEAR WARRANTY
FREIGHT FREE!!
Output Current continuous: |
100 Amps |
Dimensions (mm): |
524h x 252w x 123d |
Output Current Surge: |
100 Amps |
Mass: |
12Kg |
Output Voltage: |
12 Volts: |
Input Fuse protection: |
Yes |
Input voltage: |
90-265 Volts |
Reverse Polarity protection: |
Yes |
Input current: |
10 Amps Max |
Fully Charged indicator: |
No |
Input frequency: |
45- 65 Hz |
Over temp protection: |
Yes |
Output Boost voltage: |
14.3 VDC |
Thermal fan: |
Yes |
Output Float Voltage: |
13.5 VDC |
Battery Type Selection Switch: |
No |
Amp Meter: |
Yes |
Input Power lead: |
No
|
FREIGHT: Free
