10000 watt surge 48 volt Pure sine wave inverter - Victron Phoenix 5000/48

10000 watt surge 48 volt Pure sine wave inverter - Victron Phoenix 5000/48

$2,299.00 AUD
$2,574.00 AUD $2,299.00 AUD
Sale Sold out
Shipping calculated at checkout.



5 YEAR WARRANTY - SUPER HIGH RELIABILITY

 The Victron Phoenix 5000/48 Inverter provides clean, silent 240 VAC power for your mains appliances from 48 volt battery power.  The Phoenix 5000/48 provides a pure sine-wave output, which is the cleanest power available for those applications that require the very cleanest & purest in power.  They are microprocessor controlled and have full electronic fault protection. They also have LED indicators to indicate Power and Fault conditions. The unit also features a very low standby current to save power, and a sleep mode for even less power consumption.



 Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.

The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.



 A unique feature of the SinMax technology is very high start-up power. Conventional high frequency technology does not offer such extreme performance. Phoenix inverters, however, are well suited to power up difficult loads such as refrigeration compressors, electric motors and similar appliances.

FREE DELIVERY

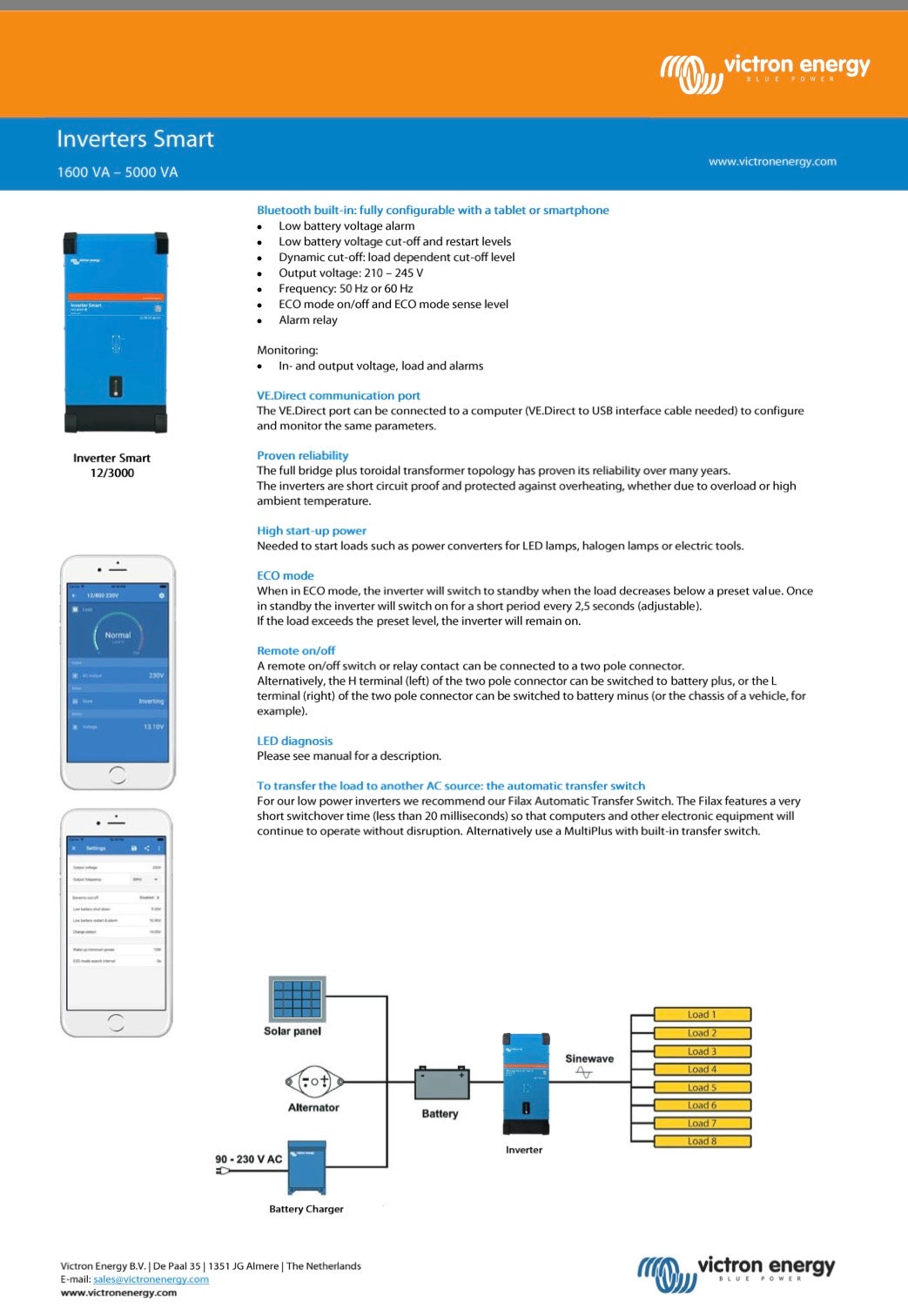

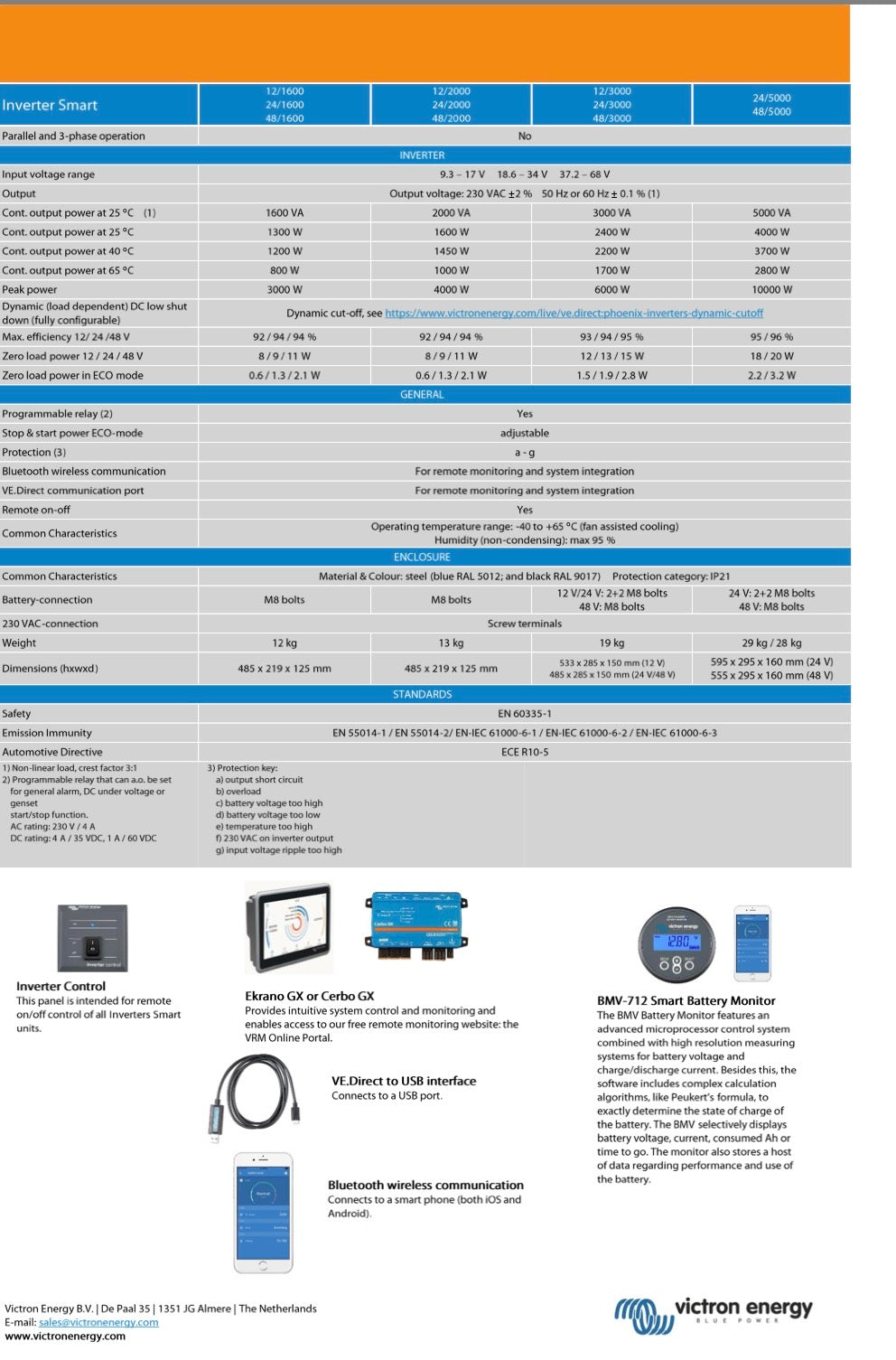

DOWNLOAD DATASHEET



Output power continuous:

5000VA

Dimensions (mm):

595h x 295w x 160d

Output power intermittent:

5300W

Mass:

28Kg

Output power surge:

10,000W

Battery high protection:

Yes

Input voltage:

38-66W

Battery low protection:

Yes

Standby current:

6W

Overload protection:

Yes

Output frequency select:

50 Hz

Over temp protection:

Yes

Output regulation:

+/-2%

Thermal fan:

Yes

Output waveform:

Sine, <3%THD

Output Power LED:

Yes

Efficiency:

to 95%

Fault LED:

Yes

Selectable demand start:

Yes

Audible alarm:

Contact

Output isolation:

Yes

Remote control:

Optional

Temperature:

LED

Low voltage error:

LED

Output voltage:

LED

Overload error:

LED
